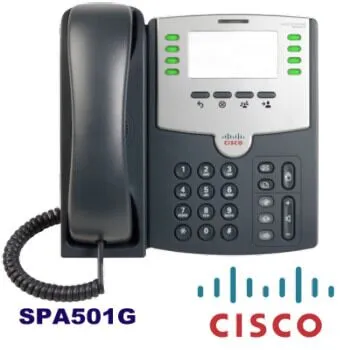

Cisco SPA501G IP Phone Manama
Cisco SPA501G supports SCCP protocol for working with the Cisco UC500 and SIPv2 protocol for working with the SPA9000 and other servers.
SPA 501Technical Specifications:
- 2 port s 10 / 100BASE-T RJ-45 Ethernet (IEEE 802.3)
- The handset RJ-9
- Built-in speaker and microphone
- 2.5mm Headset Jack
- LEDs / buttons:
- 8 buttons
- LEDs indicate the status of the line – active, not registered,
- Illuminated buttons: Audio Mute On / Off Headset On / Off, Speakerphone On / Off
Supported network protocols:
- MAC address (IEEE 802.3)
- IPv4 (RFC 791)
- Address Resolution Protocol (ARP)
- DNS: A record (RFC 1706), the SRV record (RFC 2782)
- Dynamic Host Conf iguration Protocol (DHCP) client (RFC 2131)
- Internet Control Message Protocol (ICMP) (RFC 792)
- TCP (RFC 793)
- User Datagram Protocol (UDP) (RFC 768)
- Real-Time Transport Protocol (RTP) (RFC 1889, 1890)
- Real-Time Control Protocol (RTCP) (RFC 1889)
- Differentiated Services (DiffServ) (RFC 2475)
- Type of Service (ToS) (RFC 791, 1349)
- VLAN tagging 802.1p / Q: Layer 2 quality of service ( QoS )
- Simple Network Time Protocol (SNTP) (RFC 2030)
Specification of the voice:
- 8 lines
- Voice protocol SIP v.2 (RFC 3261, 3262, 3263, 3264)
- SPCP with the Cisco Unified Communications 500 Series
- Protocol support SIP networks with NAT (including STUN server support)
- Redoing registration of the primary server SIP
- SIP Frag (RFC 3420)
- The ability to initiate encrypted connections via SRTP
- Voice codecs:
- G.711 (A-law and μ-law)
- G.726 (16/24/32/40 kbps)
- G.729 A
- G.722
- Dynamic payload support
- The possibility laid site and a size of the audio frames per packet
- Dual-tone multifrequency ( DTMF ), in-band and out-of-band (RFC 2833) ( SIP INFO)
- Flexible dial plan support with interdigit timers
- Support for call by IP address / URL
- Generating sounds during a conversation
- J itter buffer: adaptive
- Hiding lost frames
- Generate artificial background noise generation (CNG)
- The algorithm recognizes a caller activity (VAD) algorithm damping silence
- Adjusting damping / profit
- VMWI – Voicemail waiting indicator, by sub skrypcje, notification
- Third-party call control (RFC 3725)
Provisioning and Administration:
- Built Administration Server to manage Administrator and User
- Management by phone keypad
- The system provisioning via HTTPS, HTTP, TFTP
- Asynchronous notification for updates notification (NOTIFY)
- Nonintrusive in-service upgrades
- Generating reports and registration of events
- Statistics BYE broadcast in the news
- And syslog server entries dubug: configurable per line
Environmental Specifications:
- Power supply:
- Power of Ethernet 802.3af
- The power supply is optional and is purchased separately
- Compatible power supply models: Cisco PA100-NA, PA100-EU, PA100-UK, PA100-AU
- Specifications power supply on the output: +5 VDC at 2.0A
- Dimensions: 214 x 212 x 44 mm
- Weight: 0.9 kg
- Operating temperature: 0 ° ~ 40 ° C
- Storage temperature: 20 ° ~ 70 ° C
- Air humidity Operating: 5% to 95%
- Air humidity during storage: 5% to 95%
